# Lecture 27
----
## **DANL 100: Programming for Data Analytics**
### Byeong-Hak Choe
### December 8, 2022

---
# Announcement
### <p style="color:#00449E"> Student Course Experience (SCE) Survey

- Effective Fall 2022, the Student Course Experience (SCE) survey replaces the Student Observation of Faculty Instruction (SOFI) survey.

- In a web browser, students should visit their [myGeneseo](https://my.geneseo.edu/dashboard) portal, then select KnightWeb, Surveys, then SCE (formerly SOFI) Surveys.

---
# Announcement
### <p style="color:#00449E"> Final Exam

- The Final Exam is scheduled on Wednesday, December 14, noon - 2 P.M.

- The Final Exam covers:
  - Python basics in programming (if-elif-else chain, for-loops, while-loops, functions with `def`)
  - R basics (variable and data types, vectors, and data.frame)
  - Loading CSV files in Python and R with `read_csv()`
  - Python pandas DataFrame and Series
  - Data visualization with Python `seaborn` and R `ggplot2`

---
class: inverse, center, middle

# Starting with R and RStudio
<html><div style='float:left'></div><hr color='#EB811B' size=1px width=796px></html>

---
# Installing the Tools
### <p style="color:#00449E"> R programming </p>

The R language is available as a free download from the R Project website at:

- Windows: [https://cran.r-project.org/bin/windows/base/](https://cran.r-project.org/bin/windows/base/)
- Mac: [https://cran.r-project.org/bin/macosx/](https://cran.r-project.org/bin/macosx/)
  -  Download the file of R that corresponds to your Mac OS (Big Sur, Apple silicon arm64, High Sierra, El Capitan, Mavericks, etc.)

---
# Installing the Tools
### <p style="color:#00449E"> RStudio </p>

- **RStudio** offers a graphical interface to assist in creating R code:

- The RStudio Desktop is available as a free download from the following webpage:
    - [https://www.rstudio.com/products/rstudio/download/#download](https://www.rstudio.com/products/rstudio/download/#download)

---
# Installing the Tools
### <p style="color:#00449E"> RStudio Environment </p>
.pull-left[
<img src="../lec_figs/rstudio_env.png" width="100%" style="display: block; margin: auto;" />
]

.pull-right[
- **Script Pane** is where you write R commands in a script file that you can save.
  - An R script is simply a text file containing R commands.
  - RStudio will color-code different elements of your code to make it easier to read.

]
---
# Installing the Tools
### <p style="color:#00449E"> RStudio Environment </p>
.pull-left[
<img src="../lec_figs/rstudio_env.png" width="100%" style="display: block; margin: auto;" />
]

.pull-right[
- **Console Pane** allows you to interact directly with the R interpreter and type commands where R will immediately execute them.

]
---
# Installing the Tools
### <p style="color:#00449E"> RStudio Environment </p>
.pull-left[
<img src="../lec_figs/rstudio_env.png" width="100%" style="display: block; margin: auto;" />
]

.pull-right[
- **Environment Pane** is where you can see the values of variables, data frames, and other objects that are currently stored in memory.

]

---
# Installing the Tools
### <p style="color:#00449E"> RStudio Environment </p>
.pull-left[
<img src="../lec_figs/rstudio_env.png" width="100%" style="display: block; margin: auto;" />
]

.pull-right[
- **Plots Pane** contains any graphics that you generate from your R code.

]

---
# Installing the Tools
### <p style="color:#00449E"> R Packages </p>

```r
pkgs <- c("ggplot2", "readr", "dplyr")
install.packages(pkgs)
```

- While running the above codes, I recommend you to answer "no" to the following question:

.pull-left[

**Mac**: *"Do you want to install from sources the packages which need compilation?"* from Console Pane.
]

.pull-right[

**Windows**: *"Would you like to use a personal library instead?"* from Pop-up message.
]

---
# Installing the Tools
### <p style="color:#00449E"> R Packages </p>

- Check whether `ggplot2` is installed well:

```r
library(ggplot2)   # loading the package tidyverse
mpg  # data.frame provided by the package ggplot2
     # ggplot2 is included in tidyverse
```

- Let me know if you have an error from the above code.

---
class: inverse, center, middle

# Workflow
<html><div style='float:left'></div><hr color='#EB811B' size=1px width=796px></html>

---
# Workflow
### <p style="color:#00449E"> Shortcuts for RStudio and RScript </p>

.pull-left[
**Mac**

- **command + shift + N** opens a new RScript.
- **command + return** runs a current line or selected lines.
- **command + shift + C** is the shortcut for # (commenting).
- **option + - ** is the shortcut for `<-`.
]

.pull-right[
**Windows**

- **Ctrl + Shift + N** opens a new RS-cript.
- **Ctrl + return** runs a current line or selected lines.
- **Ctrl + Shift + C** is the shortcut for # (commenting).
- **Alt + - ** is the shortcut for `<-`.
]

---
# Workflow

- **Home/End** moves the blinking cursor bar to the beginning/End of the line.
  - **Ctrl** (**command** for Mac Users) **+** <svg aria-hidden="true" role="img" viewBox="0 0 448 512" style="height:1em;width:0.88em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:currentColor;overflow:visible;position:relative;"><path d="M447.1 256C447.1 273.7 433.7 288 416 288H109.3l105.4 105.4c12.5 12.5 12.5 32.75 0 45.25C208.4 444.9 200.2 448 192 448s-16.38-3.125-22.62-9.375l-160-160c-12.5-12.5-12.5-32.75 0-45.25l160-160c12.5-12.5 32.75-12.5 45.25 0s12.5 32.75 0 45.25L109.3 224H416C433.7 224 447.1 238.3 447.1 256z"/></svg> / <svg aria-hidden="true" role="img" viewBox="0 0 448 512" style="height:1em;width:0.88em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:currentColor;overflow:visible;position:relative;"><path d="M438.6 278.6l-160 160C272.4 444.9 264.2 448 256 448s-16.38-3.125-22.62-9.375c-12.5-12.5-12.5-32.75 0-45.25L338.8 288H32C14.33 288 .0016 273.7 .0016 256S14.33 224 32 224h306.8l-105.4-105.4c-12.5-12.5-12.5-32.75 0-45.25s32.75-12.5 45.25 0l160 160C451.1 245.9 451.1 266.1 438.6 278.6z"/></svg> works too.

- **Ctrl** (**command** for Mac Users) **+ Z** undoes the previous action.
- **Ctrl** (**command** for Mac Users) **+ Shift + Z** redoes when undo is executed.

- **Ctrl** (**command** for Mac Users) **+ F** is useful when finding a phrase (and replace the phrase) in the RScript.

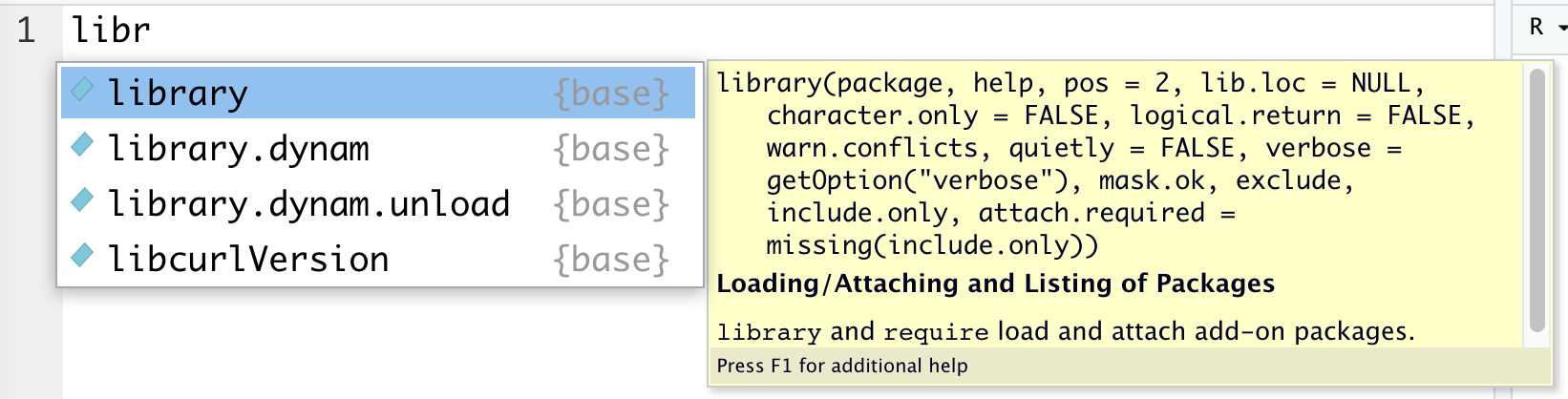

- Auto-completion of command is useful.
  - Type `libr` in the RScript in RStudio and wait for a second.

.pull-left[

```r
libr
```
]
.pull-right[
<img src="../lec_figs/auto-completionRStudio.png" width="100%" style="display: block; margin: auto;" />

]

---
# Workflow

- To install R package `PACKAGE`, use `install.packages("PACKAGE")`.

```r
install.packages("ggplot2")  # installing package "ggplot2"
```

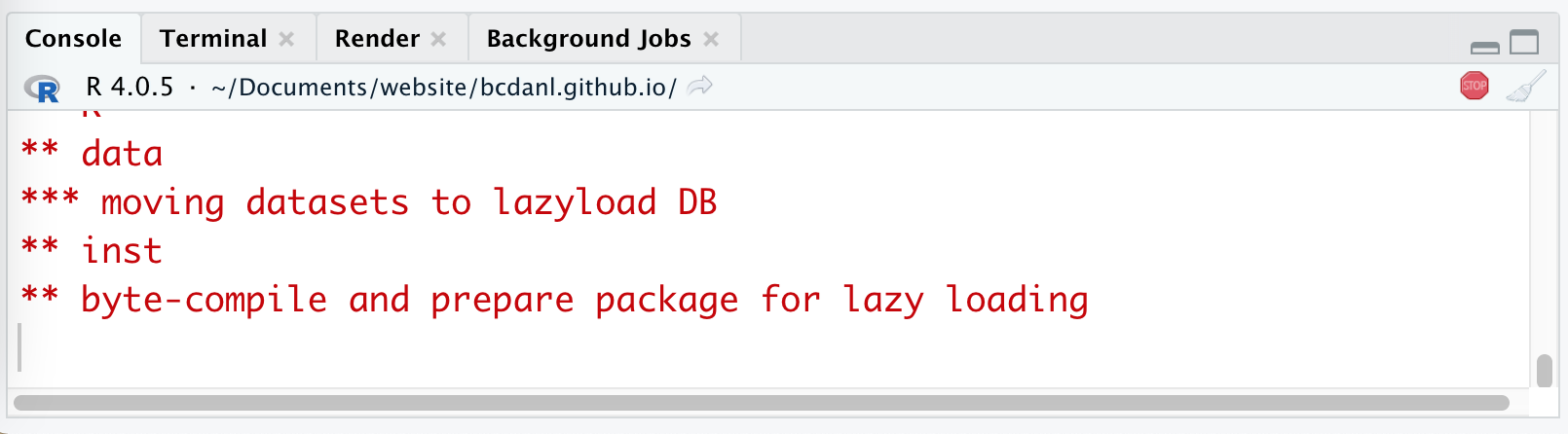

- When the code is running, RStudio shows the STOP icon (<svg aria-hidden="true" role="img" viewBox="0 0 384 512" style="height:1em;width:0.75em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:red;overflow:visible;position:relative;"><path d="M384 128v255.1c0 35.35-28.65 64-64 64H64c-35.35 0-64-28.65-64-64V128c0-35.35 28.65-64 64-64H320C355.3 64 384 92.65 384 128z"/></svg>) at the top right corner in the Console Pane.
  - Do not click it unless if you want to stop running the code.

---
# Workflow
### <p style="color:#00449E"> Quotation marks, parentheses, and `+` </p>

- Quotation marks and parentheses must always come in a pair.
  - If not, Console Pane will show you the continuation character `+`:

```r
> x <- "hello
```

- The `+` tells you that R is waiting for more input; it doesn’t think you’re done yet.

---
class: inverse, center, middle

# Starting with R
<html><div style='float:left'></div><hr color='#EB811B' size=1px width=796px></html>

---
# Starting with R
### <p style="color:#00449E"> Assignment </p>
- R has many assignment operators (e.g., `<-`, `=`, `->` ).
- The preferred one is `<-`.

```r
x <- 2
x < - 3
print(x)

x <- 5
x = 5
5 -> x
```

---
# Starting with R
### <p style="color:#00449E"> R variables and data types </p>

- **Variables** can be thought of as a labelled container used to store information.

- Variables allow us to recall saved information to later use in calculations.

- Variables can store many different things in RStudio, from single values, data frames, to graphs.

---
# Starting with R
### <p style="color:#00449E"> R variables and data types </p>

.panelset[

.panel[.panel-name[variable types]

.pull-left[

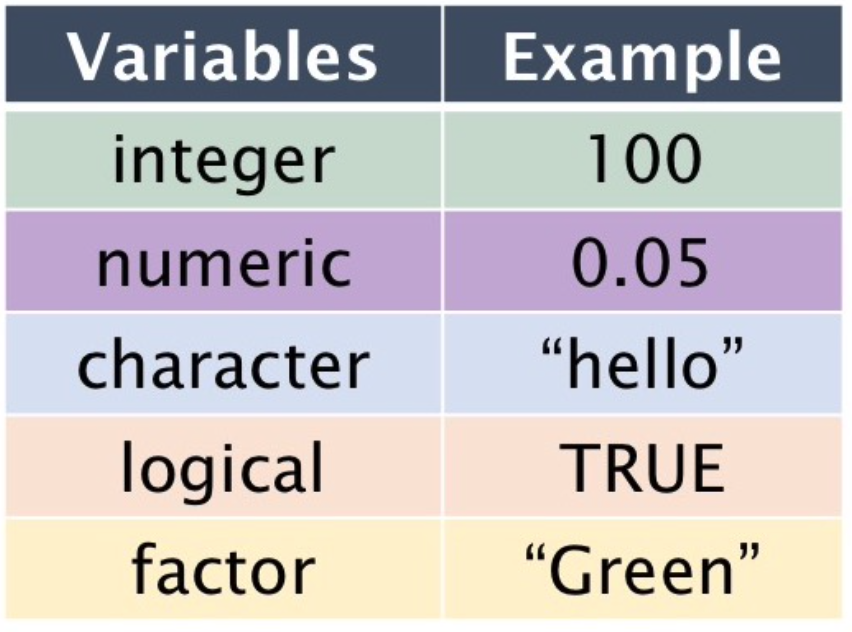

<img src="../lec_figs/r_variable_types.png" width="100%" style="display: block; margin: auto;" />
]

.pull-right[
  - **Logical**: TRUE or FALSE.
  - **Numeric**: Decimal numbers
  - **Integer**: Integers
  - **Character**: Text strings
  - **Factor**: Categorical values. Each possible value of a factor is known as a *level*.

]

.panel[.panel-name[data types]

.pull-left[

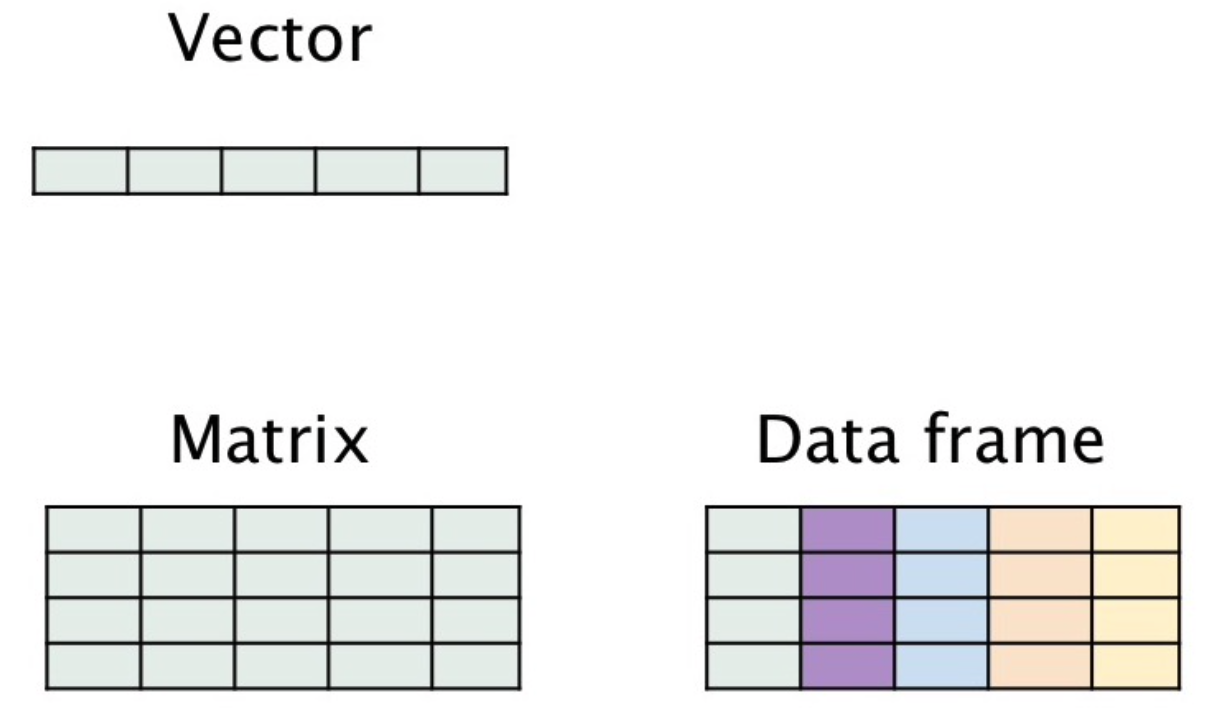

<img src="../lec_figs/r_data_types.png" width="80%" style="display: block; margin: auto;" />
]

.pull-right[
- **vector**:	1D collection of variables of the same type
- **matrix**:	2D collection of variables of the same type
- **data.frame**:	2D collection of variables of multiple types
]

]

---
# R variable and data types
### <p style="color:#00449E">  </p>

.panelset[

.panel[.panel-name[Character]
- Strings are known as “character” in R.
- Use the double quotes " or single quotes ' to wrap around the string

```r
myname <- "my_name"
class(myname)
```
- `class()` function returns the data type of an object.
]

.panel[.panel-name[Numbers]
- Numbers have different classes.
  - The most common two are integer and numeric. Integers are whole numbers:

```r
favourite.integer <- as.integer(2)
print(favourite.integer)
class(favourite.integer)

favourite.numeric <- as.numeric(8.8)
print(favourite.numeric)
class(favourite.numeric)

pvalue.threshold <- 0.05
```
]

.panel[.panel-name[Logical (TRUE/FALSE)]
- We use the `==` to test for equality in R

```r
class(TRUE)
favourite.numeric == 8.8
favourite.numeric == 9.9
```
]

.panel[.panel-name[Vectors]
- We can create 1D data structures called “vectors”.

```r
1:10
2*(1:10)
seq(0, 10, 2)
myvector <- 1:10
myvector
b <- c(3,4,5)
b^2
beers <- c("BUD LIGHT", "BUSCH LIGHT", "COORS LIGHT", "MILLER LITE", "NATURAL LIGHT")
beers
```
]

.panel[.panel-name[Factors]
- Factors store categorical data.

- Under the hood, factors are actually integers that have a string label attached to each unique integer.
  - For example, if we have a long list of Male/Female labels for each of our patients, this will be stored a “row” of zeros and ones by R.

```r
beers <- as.factor(beers)
class(beers)
levels(beers)
nlevels(beers)
```
]

]

---
# Starting with R
### <p style="color:#00449E"> NULL and NA values </p>

- `NULL` is just an alias for `c()`, the empty vector.
- `NA` indicates missing or unavailable data.

```r
c(c(), 1, NULL)
c("a", NA, "c")
```

---
# Starting with R
### <p style="color:#00449E"> NULL and NA values </p>

- `NULL` is just an alias for `c()`, the empty vector.
- `NA` indicates missing or unavailable data.

```r
c(c(), 1, NULL)
c("a", NA, "c")
```

---
class: inverse, center, middle

# Working with Data from Files
<html><div style='float:left'></div><hr color='#EB811B' size=1px width=796px></html>

---
# Working with Data from Files

- Step 0. Download the zip file, 'car_data.zip' from the Files section in our Canvas.

- Step 1. Find the path name for the file, `car.data.csv`.

- Step 2. In the code below, replace 'PATH_NAME_FOR_THE_FILE_car.data.csv' with the path name for the file, `car.data.csv`.

- Step 3. Run the following R code:

```r
# install.packages("readr")
library(readr)

uciCar <- read_csv(
		'PATH_NAME_FOR_THE_FILE_car.data.csv')
View(uciCar)
```

---
# Working with Data from Files
### <p style="color:#00449E"> Examining data frame </p>

- `class()` tells you what kind of R object you have.
- `dim()` shows how many rows and columns are in the data for `data.frame`.
- `head()` shows the top few rows of the data.
- `help()` provides the documentation for a class.
  - Try `help(class(uciCar))`.
- `str()` gives us the structure for an object.

---
# Working with Data from Files
### <p style="color:#00449E"> Examining data frame </p>

- `summary()` provides a summary of almost any R object.
- `skimr::skim()` provides a more detailed summary.
  - `skimr` is the package that provides the function `skim()`.
- `print()` prints all the data.
  - Note: for large datasets, this can take a very long time and is something you want to avoid.
- `View()` displays the data in a simple spreadsheet-like grid viewer.
- `dplyr::glimpse()` displays brief information about the data.

---
# Working with Data from Files
### <p style="color:#00449E"> Examining data frame </p>

```r
print(uciCar)
class(uciCar)
dim(uciCar)
head(uciCar)
help(class(uciCar))
str(uciCar)
summary(uciCar)

library(skimr)
skim(uciCar)
library(tidyverse)
glimpse(uciCar)
```

---
# Working with Data from Files
### <p style="color:#00449E"> Reading data from an URL </p>

- We can import the data file from the web.

```r
# install.packages("readr")
# library(readr)

tvshows <- read_csv(
		'https://bcdanl.github.io/data/tvshows.csv')
```

---
# Working with Data from Files
### <p style="color:#00449E"> Accessing Subsets </p>

.panelset[

.panel[.panel-name[head() & tail()]
- `head()` returns the first N rows of our data frame.
- `tail()` returns the last N rows of our data frame.

```r
head(tvshows, n = 3)
head(tvshows, 3)
tail(tvshows, 3)
```
]

.panel[.panel-name[row]
- As in Python, we can use the same slicing methods in R.
  - Starting index in R is 1, unlike Python.

```r
tvshows[ 1:3, ]
tvshows[ c(1, 2, 3), ]
tvshows[ c(1, 2, 3), 1]
```
]

.panel[.panel-name[column]
- Return the “Network” column in the data set:

```r
tvshows$Network
tvshows[, 2]
tvshows[, "Network"]
```

- Return the columns named “Show” and “GRP”

```r
tvshows[ , c("Show", "GRP")]
```
]

.panel[.panel-name[row & column]
- Return only the first 3 rows and columns 2 and 5 of the data set

```r
tvshows[1:3, c(2,5)]
```
]

.panel[.panel-name[filtering]
- Return only the shows whose `Genre` is `Reality`.

```r
tvshows[ tvshows$Genre == "Reality",  ]
```

- Another way to subset the shows is with the `which()` function.    - This returns the TRUE indices of a logical object.

```r
reality <- which(tvshows$Genre == "Reality")
reality
tvshows[ reality, ]
```

]

.panel[.panel-name[filtering]
- What if we want all shows whose PE is greater than 80?

```r
tvshows[tvshows$PE > 80, ]
```

- Another way to subset the shows is with the `which()` function.    - This returns the TRUE indices of a logical object.

```r
reality <- which(tvshows$Genre == "Reality")
reality
tvshows[ reality, ]
```

]

---
# Working with Data from Files
### <p style="color:#00449E"> Class Exercises 2 </p>
1. Return those shows whose `Duration` values are `30`.

2. Return those shows whose `GRP` values are greater than the mean value of `GRP`.

2. Return the data.frame with only three variables---`Show`, `PE`, and `GRP`---for which `PE` values are greater than the mean value of `PE`.

---
class: inverse, center, middle

# Data Visualization with `ggplot2`
<html><div style='float:left'></div><hr color='#EB811B' size=1px width=796px></html>

---
#  `ggplot2`

- `ggplot2` is a R data visualization package based on [The Grammar of Graphics](http://vita.had.co.nz/papers/layered-grammar.pdf).
  - `ggplot2` is the most elegant and most versatile visualization tools in R.
  - We provide the data, tell `ggplot2` how to map variables to `aes`thetics, what graphical primitives to use, and it takes care of the details.

```r
library(ggplot2)
```

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Types of plots

- We will consider the following types of visualization:

- Bar chart

- Histogram

- Scatter plot

  - Scatter plot with Fitted line

- Line chart

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Getting started with `ggplot2`

- Let's use the `titanic` and `tips` data.frames:

```r
df_titanic <- read_csv('https://bcdanl.github.io/data/titanic_cleaned.csv')
df_tips <- read_csv('https://bcdanl.github.io/data/tips_seaborn.csv')
```

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Bar Chart

- A bar chart is used to plot the frequency of the different categories.
  - It is useful to visualize how values of a **categorical variable** are distributed.
  - A variable is **categorical** if it can only take one of a small set of values.


- We use `geom_bar()` function to plot a bar chart:

.pull-left[

```r
ggplot( data = df_titanic ) +
  geom_bar( aes(x = sex) )
```
]

.pull-right[

- Mapping
  - `data`: data.frame
  - `x`:  Name of a categorical variable (column) in data.frame

]

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Bar Chart

- We can further break up the bars in the bar chart based on another categorical variable.

- This is useful to visualize the relationship between the two categorical variables.

.pull-left[

```r
ggplot( data = df_titanic ) +
  geom_bar( aes( x = sex,
                 fill = survived ) )
```
]

.pull-right[

- Mapping
  - `fill`:  Name of a categorical variable

]

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Histogram

- A histogram is a **continuous** version of a bar chart.
  - It is used to plot the frequency of the different values.
  - It is useful to visualize how values of a **continuous variable** are distributed.
  - A variable is **continuous** if it can take any of an infinite set of ordered values.


- We use `geom_histogram()` function to plot a histogram:
.pull-left[

```r
ggplot(data = df_titanic) +
  geom_histogram( aes( x = age ),
                    bins = 5 )
```
]

.pull-right[
- Mapping
  - `bins`:  Number of bins

]

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Scatter plot

- A scatter plot is used to display the relationship between two continuous variables.

-  We can see co-variation as a pattern in the scattered points.

- We use `geom_point()` function to plot a scatter plot:

.pull-left[

```r
ggplot( data = df_tips ) +
  geom_point( aes( x = total_bill,
                   y = tip ) )
```
]

.pull-right[
- Mapping
  - `x`:  Name of a continuous variable on the horizontal axis
  - `y`:  Name of a continuous variable on the vertical axis
]

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Scatter plot

- To the scatter plot, we can add a `color`-`VARIABLE` mapping to display how the relationship between two continuous variables varies by `VARIABLE`.

- Suppose we are interested in the following question:
  - **Q**. Does a smoker and a non-smoker have a difference in tipping behavior?

```r
ggplot( data = df_tips ) +
  geom_point( aes( x = total_bill, y = tip,
                   color = smoker ) )
```

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Fitted line

- From the scatter plot, it is often difficult to clearly see the relationship between two continuous variables.
  - `geom_smooth( method = lm )` adds a line that fits well into the scattered points.
  - On average, the fitted line describes the relationship between two continuous variables.

```r
ggplot( data = df_tips ) +
  geom_point( aes( x = total_bill, y = tip,
                   color = smoker ) ) +
  geom_smooth( aes( x = total_bill, y = tip,
                    color = smoker ),
               method = lm )
```

---
# Data Visualization with `ggplot2`
### <p style="color:#00449E"> Line cahrt

- A line chart is used to display the trend in a continuous variable or the change in a continuous variable over other variable.

- It draws a line by connecting the scattered points in order of the variable on the x-axis, so that it highlights exactly when changes occur.

  - We use `geom_line()` function to plot a line plot:

```r
path_csv <- 'THE_PATHNAME_FOR_THE_FILE__dji.csv'
dow <- read_csv(path_csv)

ggplot( data = dow ) +
  geom_line( aes( x = Date, y = Close ) )
```
